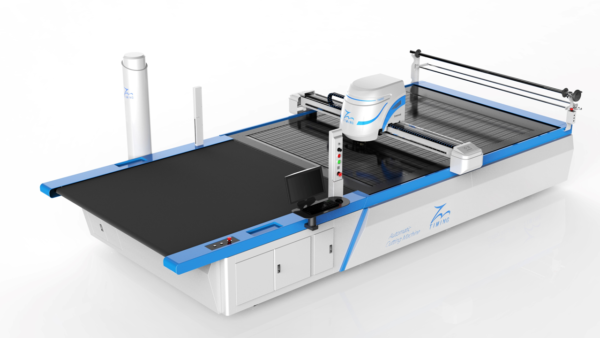

Developed with a fully industrial construction which means a modular system, fully interchangeable depending on the demands and challenges of the moment.

Description

  • Flexible configurations for the optimization of the cutting process, specific configurations for all Industries and parameter settings customized for each customer.
  • Fast, noiseless and precise, ensure maximum reliability and make available to the operator all machine functions and therefore also data feedback in real time.
  • Available in a wide range of useful cutting heights in according to the characteristics required and for configurations of any thickness lay: from single ply up to 7 cm compressed.
  • An eco-friendly machine with high power saving.

For a variety of textile, fabrics, garment, leather, shoe, upholstery, carpet, automotive interior, tent, etc.

Model

TMCC-1725/M

TMCC-2025/M

TMCC-2225/M

Cutting size

1700×2500

2000×2500

2200×2500

Cutting speed

0-60000 mm/min

Material thickness(Vacuum adsorption)

50 mm /70mm/90mm

Cutting mode

Knife repeats up-down cutting

Cutting accuracy

±1mm

Barometric pressure, Flow

0.55Mpa 160L/min

Cutting software

Timing computerized automatic cutting software

Voltage

AC380V/50HZ

Weight

2100kg-2500kg

Brand

TIMING
